Mobile UV System

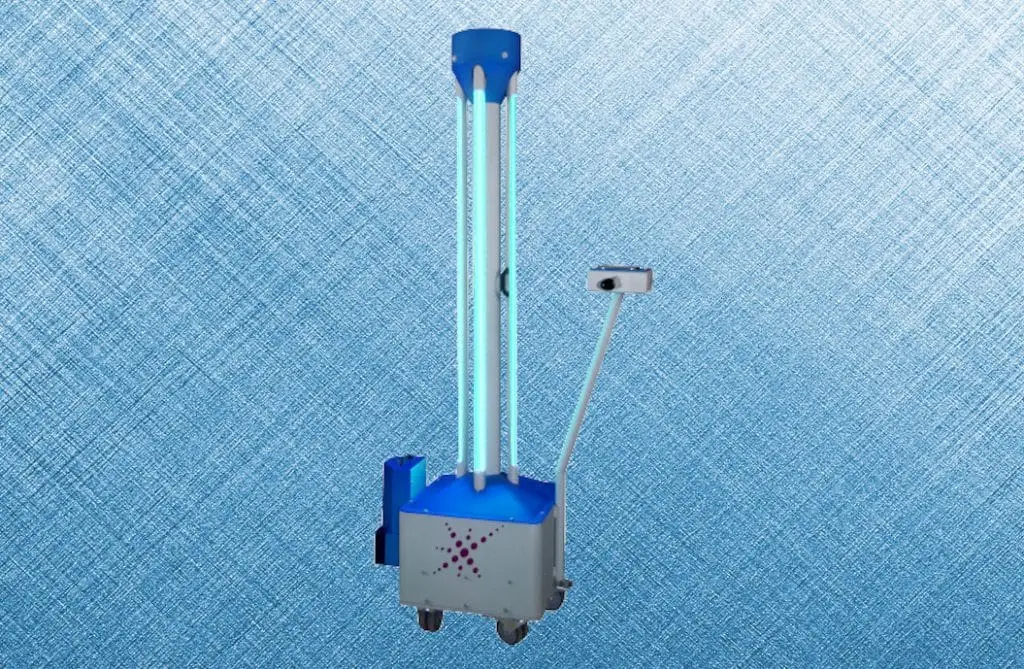

UV-Mobile system PUV-4NNI201  for hospitals

The PUV-4NNI201 Mobile UV System is a solution designed for the non-chemical disinfection of rooms in hospitals and healthcare facilities. The system is effective for both surface and airborne disinfection within a room.

To achieve its objective, the PUV-4NNI201 features 4 high-efficiency, low-pressure mercury UV emitters with a total UVC output of 200 W at the germicidal wavelength of 254 nm. These emitters are protected by a reflector/shield that only opens when the system is in operation.

The rotating reflectors ensure the lamps are protected against impacts when turned off, especially during transport between rooms, while also providing high UV reflectivity. The rotation of the shields/reflectors is performed manually by the operator before and after system use.

The system is controlled via a touch screen located on the handle or through an Android app with Bluetooth connectivity (10 m operating range). Additionally, the system can only be activated with the appropriate physical key, increasing security against unauthorized use.

In any case, the system offers a wide range of applications by allowing the treatment time to be defined for each specific room.

Technical Specifications:

• 4 UV lamps (output@254nm = 200 W)
• Lamp service life: 12,000 hr
• Aluminum reflectors / lamp shields (ALS)
• High-reflectivity surfaces for output optimization
• Bluetooth control by Android mobile (10m operating range)
• Touch screen control (TSC)
• Key-operated system activation
• High-efficiency electronic power supply (EPS) optimized for quick ignition
• Electrical protection: IP55
• Forced air cooling
• Self-supporting system with braked wheels
• Lamp failure alarm (LFA)
• Lamp end-of-life (EOL) pre-warning
• Maximum power consumption: 1100 W
• Compact and easy-to-handle unit
• Weight: approx. 35 kg
• CE marked
• User manual in Spanish

Safety systems:

The operational safety of the equipment is guaranteed by two redundant systems: motion detectors (MD) mounted on the upper part of the unit and a proximity sensor for room entry doors. The door-opening sensors must be positioned by the operator; if the door is opened, the system automatically shuts off the lamps to prevent any risk of UV exposure.

For greater operator convenience, the door sensor is wireless, eliminating the hassle of cables between the unit and the sensor. Furthermore, the presence sensors will act in the same manner if a person is detected within the room.

Please consult with us regarding the availability of other hospital room disinfection models tailored to your specific requirements.
