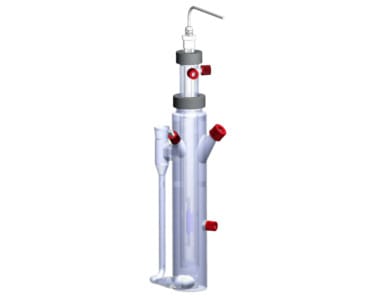

Basic batch-type photochemical reactor with a capacity between 250 and 400 ml.
The Batch-M photoreactor is a standard in laboratory-scale photochemical reactions. In fact, its design has been well-known and referenced in scientific literature for decades due to both its simplicity and versatility.
With a working volume between 250 and 400 ml, one of the reactor’s main advantages lies in handling solutions with a high absorption coefficient. Due to this characteristic, simple magnetic stirring is insufficient for mixing the liquid across the different levels produced or for ensuring homogeneous irradiation of the sample. The solution designed for this reactor is the use of a PTFE magnetic pump capable of driving the liquid through a side arm to the top of the reactor. This pump can be easily removed from the reactor for cleaning.
Like the vast majority of reactors developed for the MPDS system, the reactor is equipped with sampling ports and inlets for gas introduction, as well as couplings for temperature sensors and spectroradiometers available as options
Emitters that can be used:
